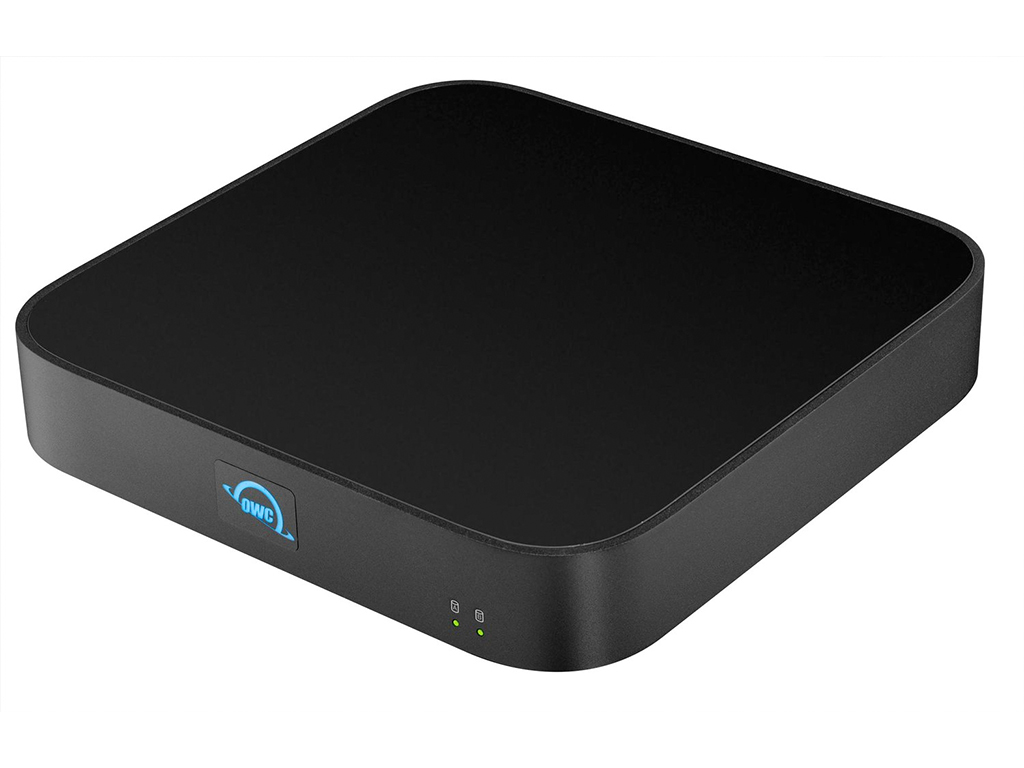

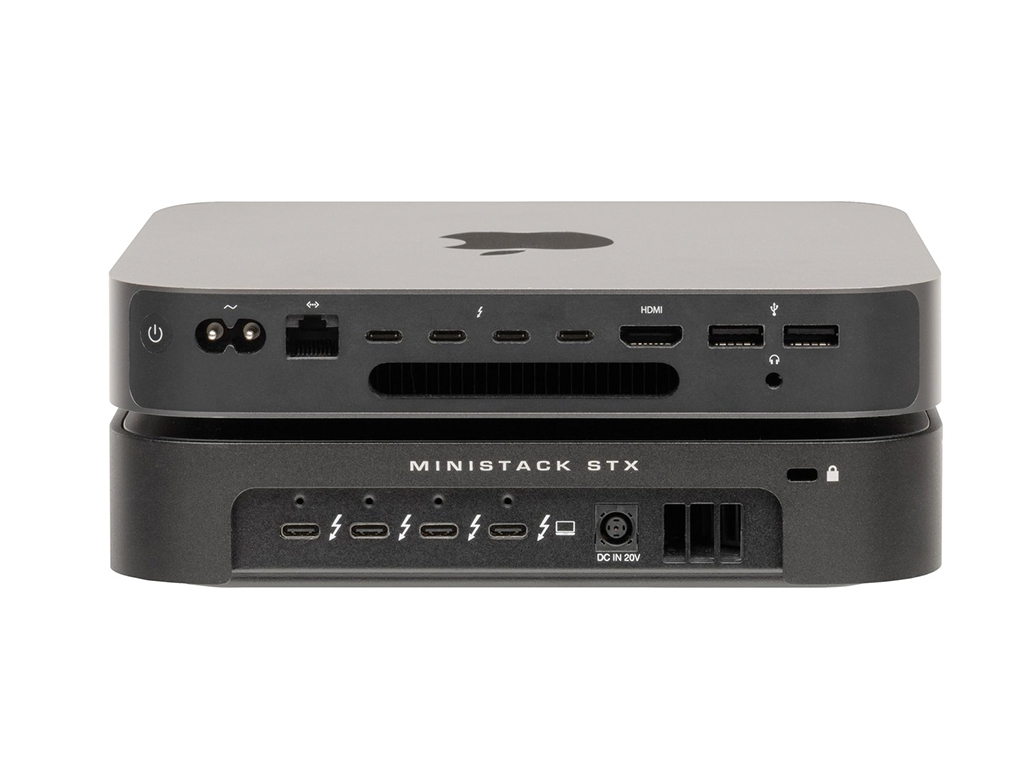

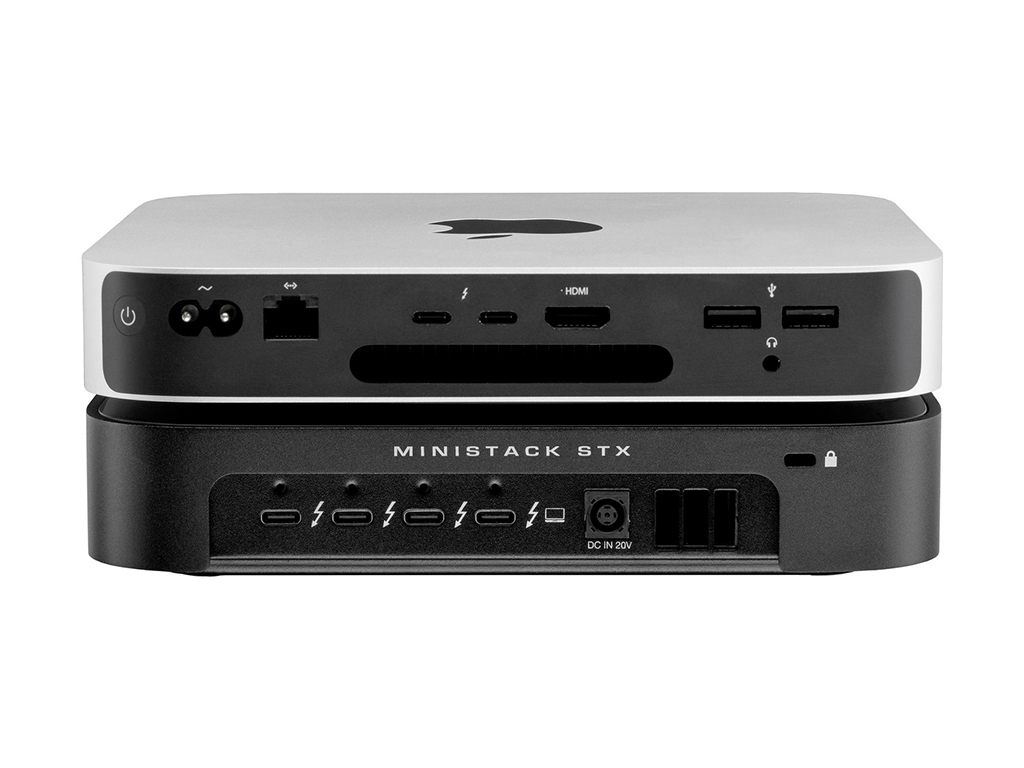

OWC miniStack STX Stackable Storage Enclosure with Thunderbolt Hub Xpansion

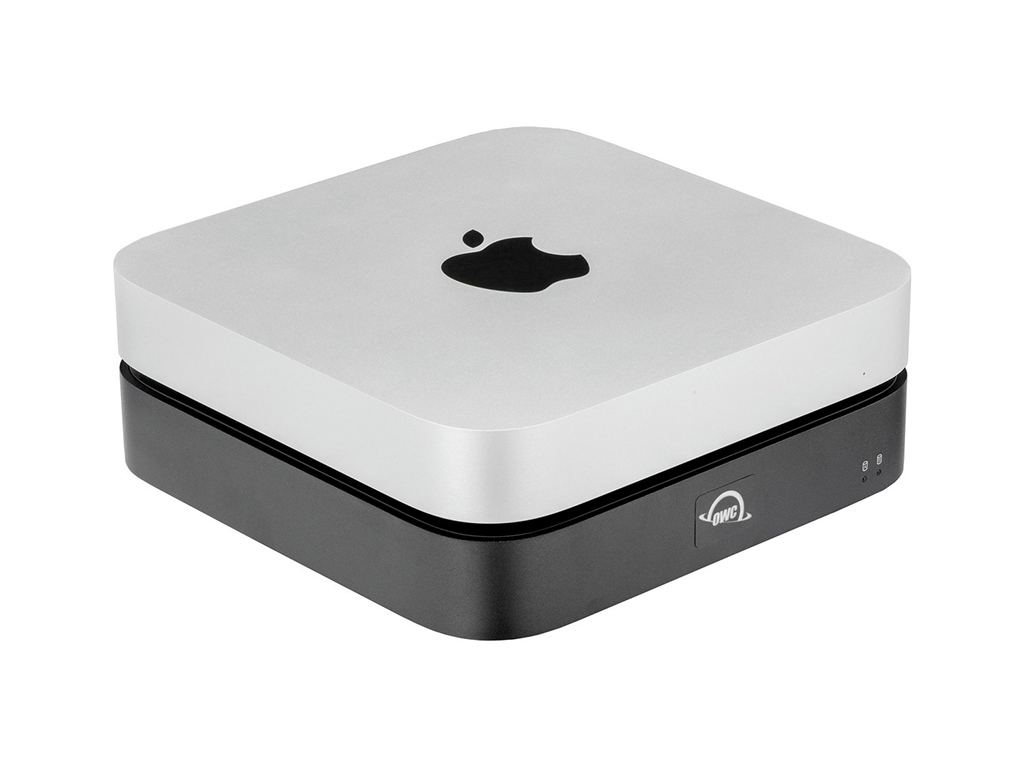

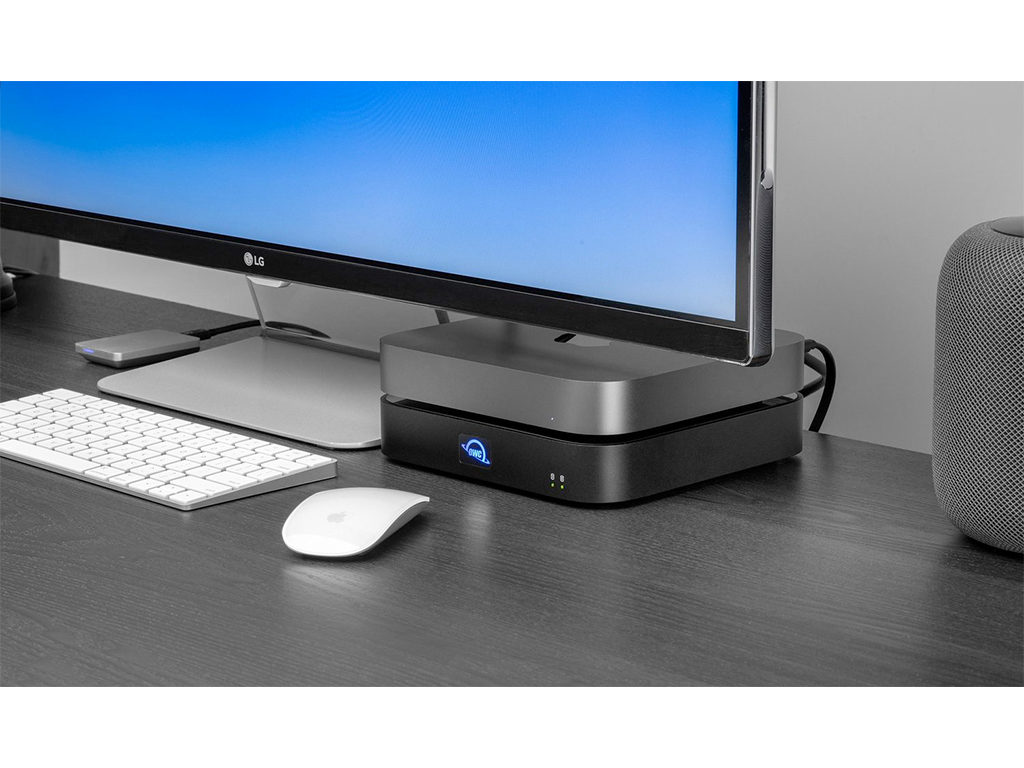

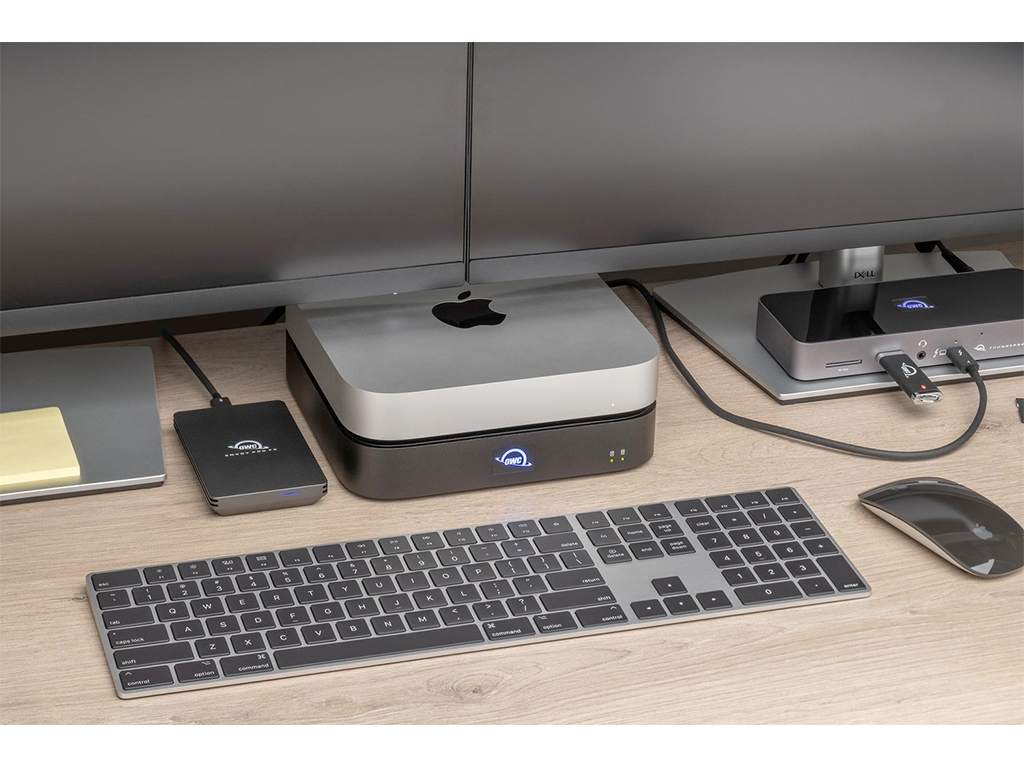

SIZED TO STACK WITH THE MINI. THE IDEAL STORAGE AND CONNECTIVITY EXPANSION SOLUTION FOR ALL.

• Massive capacity: add over 200x greater data storage on top of your Mac mini's built-in storage1
• Mega Thunderbolt: use more accessories and devices with three Thunderbolt (USB-C) ports
• Maximum compatibility: use with Thunderbolt or USB equipped Macs, PCs, iPads, Chromebooks, Android tablets…virtually anything that supports external storage

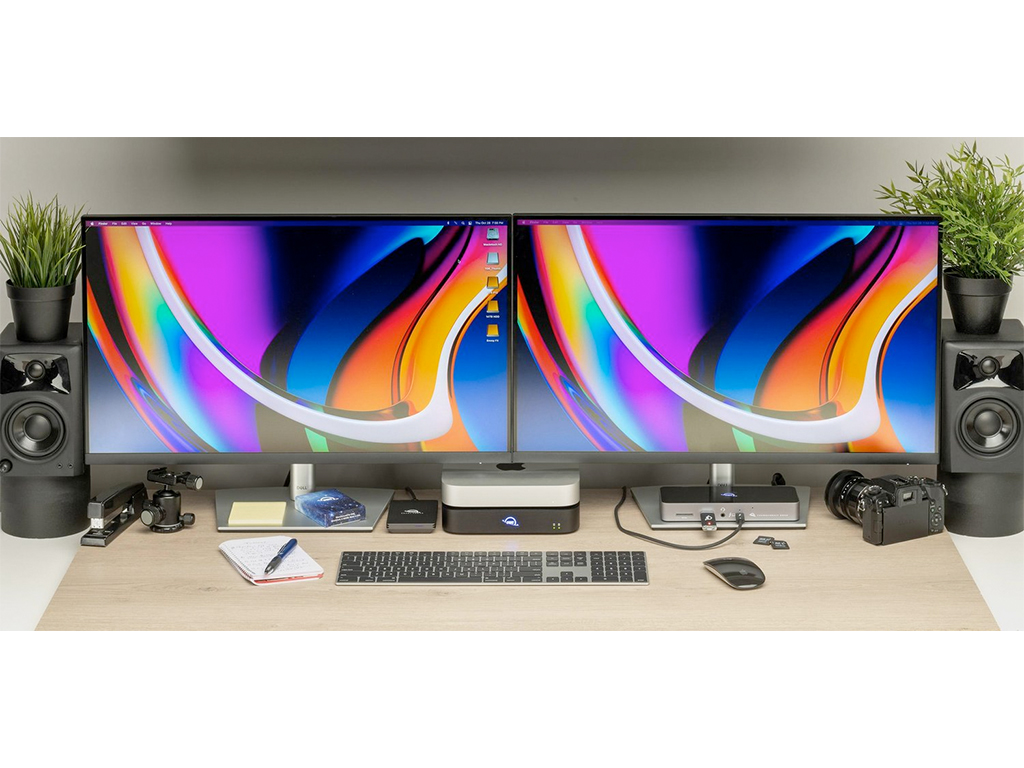

• More Connectivity: add a mix of up to five Thunderbolt devices, three USB devices, and two displays
• Power while working: 60W of notebook charging power via Thunderbolt or USB-C
• Pro-grade performance: save/access/backup data and edit 4K video with up to 770MB/s real-world tested performance
• Easy backups: Apple Time Machine and Windows File History ready
• Plug and play: includes Thunderbolt cable
• Whisper-quiet: an aluminum housing with internal heat sink and high-efficiency cooling fan provides cool, nearly silent operation
• 3 Year OWC Limited Warranty

Specifications
TOTAL CAPACITY
• 2.0TB

TOTAL SOLUTION CACHE SIZE
• 256 MB

STANDARD MECHANISM
• (1) 2.0TB Western Digital WD Blue 7,200RPM Hard Disk Drive with 256 MB cache
• * OWC reserves the right to replace or upgrade to equivalent or better components.

DISPLAY SUPPORT BY PORT
• Thunderbolt 4: Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 4 display or other display that supports USB-C connections and DisplayPort 1.4

HOT PLUG SUPPORT
• Yes

MAC OS COMPATIBILITY
• macOS 10.14 Mojave
• macOS 10.15 Catalina
• macOS 11.x Big Sur
• macOS 11.1 Big Sur
• macOS 12.x Monterey

PC OS COMPATIBILITY
• Windows 10 32-bit Edition
• Windows 10 64-bit Edition
• Windows 11

LINUX OS COMPATIBILITY
• Yes

MOBILE OS COMPATIBILITY
• iPadOS 14
• iPadOS 15
• Android 11.x
• Android 12.x

OTHER OS COMPATIBILITY
• Chrome OS
• Linux

OTHER REQUIREMENTS
• Works with any Apple Silicon Mac or iPad with Thunderbolt (USB-C), Apple ‘Intel’ Mac with Thunderbolt 3, or any Thunderbolt 4 PC. Works as a USB-C hub with SATA storage on any USB equipped iPad, Chromebook, Android device, or PC.
• macOS 11.1 or later for Thunderbolt hosts
• macOS 10.14.6 or later for USB hosts

DRIVER REQUIRED
• No

POWER SUPPLY
• External UL-listed universal auto-switching power supply

DC OUTPUT
• +20V, 7.5A

EXTERNAL POWER ADAPTER
• Yes

POWER DELIVERY
• 60W

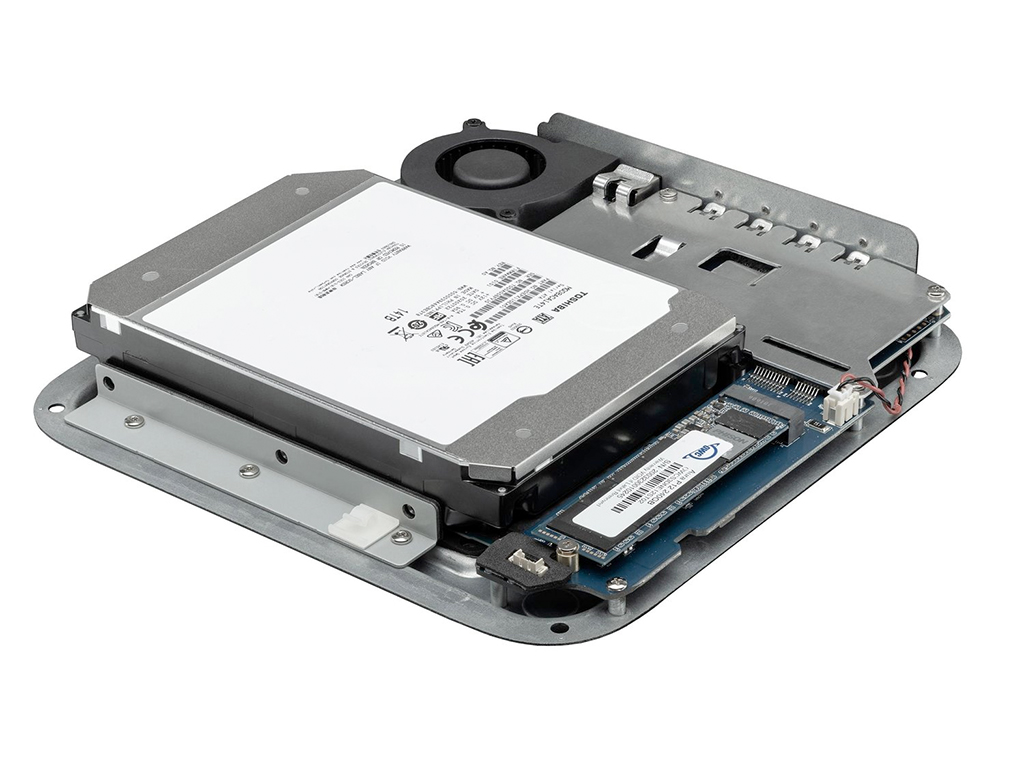

DRIVE BAYS
• 1 bay supporting: 3.5-inch SATA drives, 2.5-inch SATA drives
• 1 bay supporting: M.2 drives

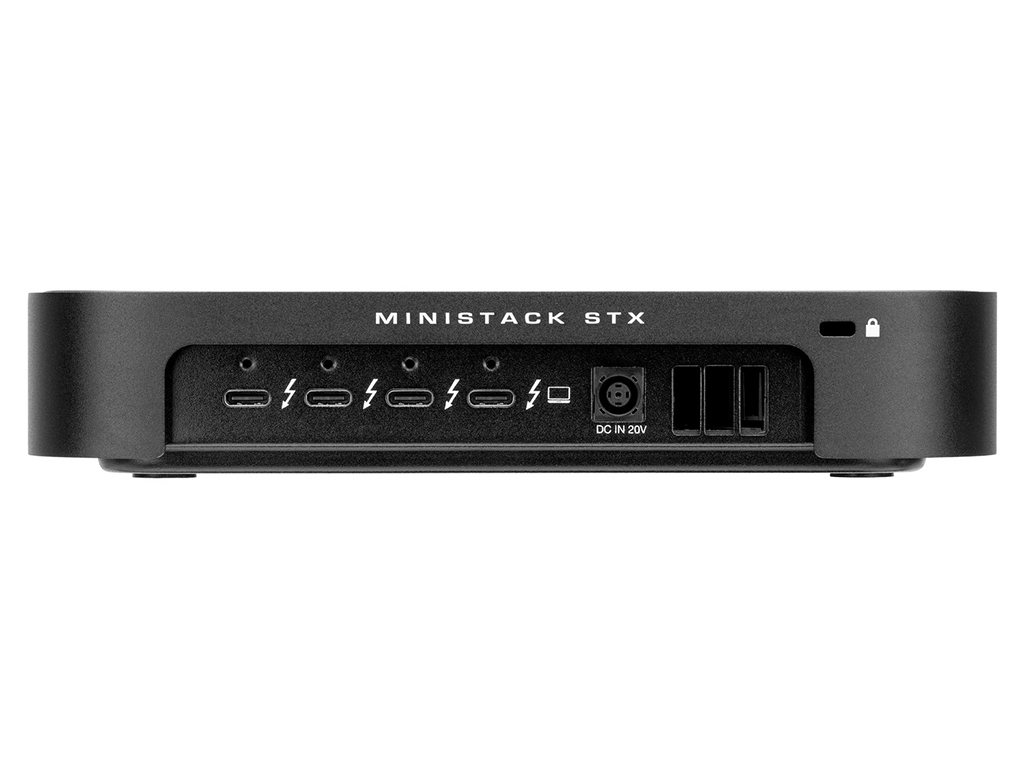

DEVICE PORTS
• (1) Host Port - Thunderbolt 4 (USB-C) up to 40 Gb/s (5000 MB/s)
• (3) Thunderbolt 4 (USB-C) Ports

COOLING
• (1) cooling fan

SECURITY SLOT
• Yes

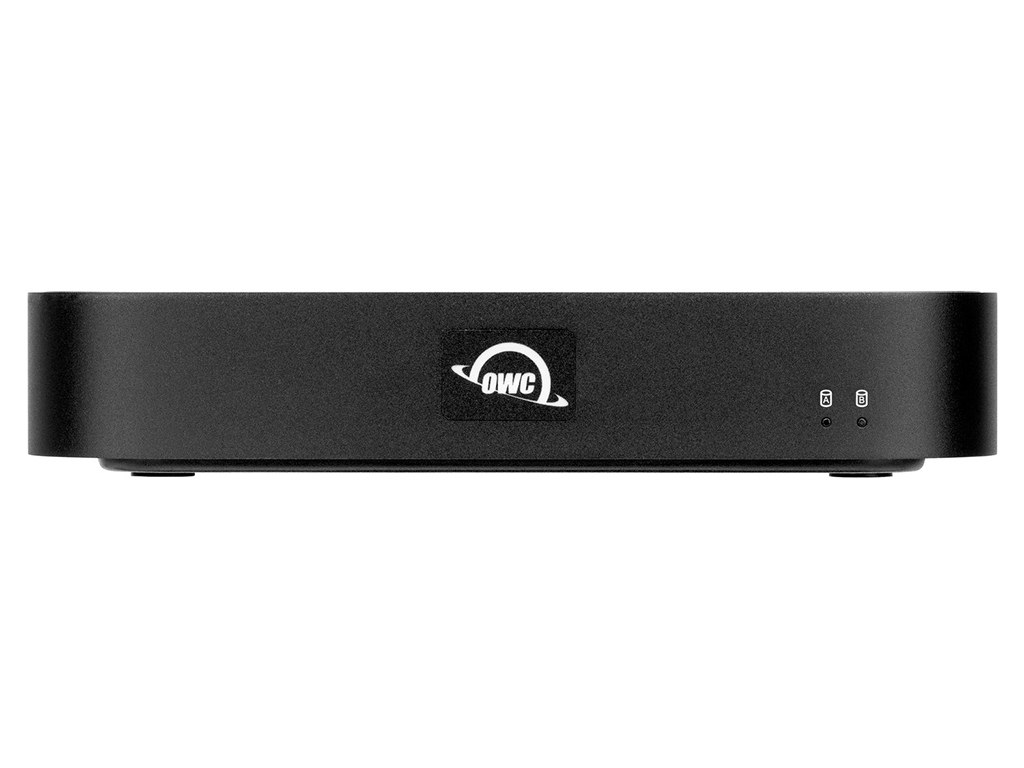

POWER/ACTIVITY LED
• Yes

DIMENSIONS
• Height: 3.7 cm (1.5 in)
• Length: 19.7 cm (7.8 in)
• Width: 19.7 cm (7.8 in)

WEIGHT
• 920.0 g (2.03 lbs)

AMBIENT TEMPERATURE
• Operating: 50°F to 95°F (10°C to 35°C)
• Non-Operating: -40°F to 149°F (-40°C to 65°C)

HUMIDITY
• Operating: 8% to 90% non-condensing
• Non-Operating: 5% to 95% non-condensing

1Based on 2018 Mac mini with factory equipped 128GB SSD vs miniStack STX with 18TB HDD and 8TB NVMe SSD.
