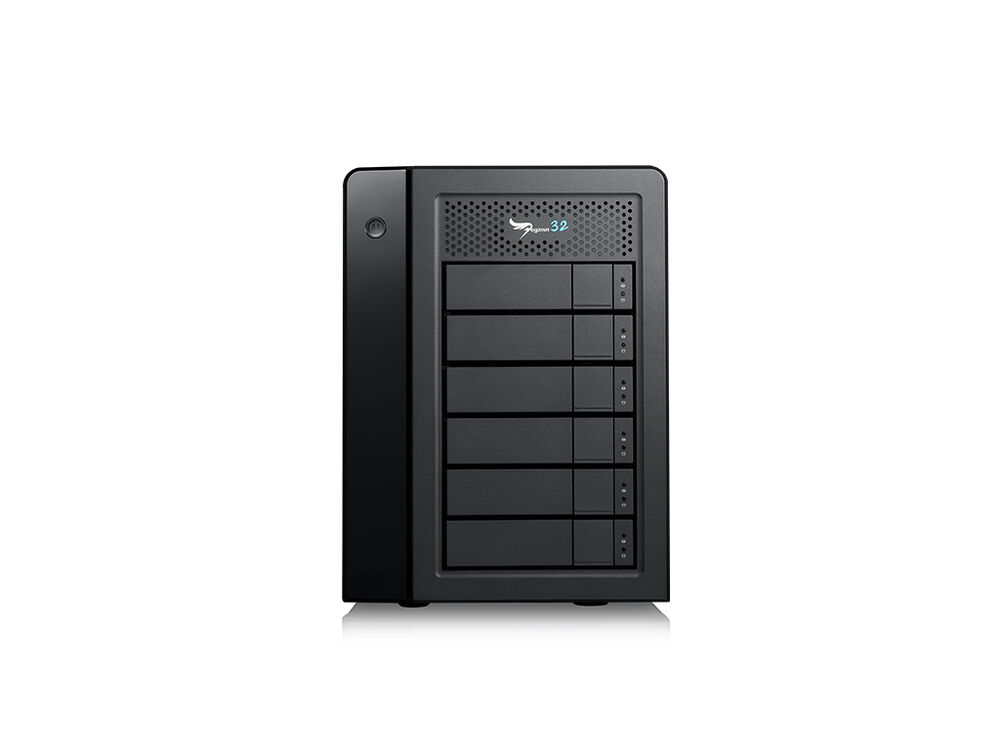

Promise Pegasus32 R6 48 TB (6 x 8 TB SATA) Raid System

Pegasus32 Series

Pegasus32 R6

• Based on TitanRidge, Intel's newest Thunderbolt chip, Pegasus32 offers additional connection options.

• It connects to either the Thunderbolt ™ 3 enabled host at 40 Gb / s or the USB 3.2 Gen 2 enabled host at 10 Gb / s! *

* Thunderbolt ™ 3 / USB cable included

• Works for 8K monitors via the DP 1.4 connector with 4 full size lanes!

• Charge your hosts up to 85 W with the Thunderbolt ™ 3 connector!

• With R8 up to 112 TB gross capacity.


Multiple displays
Two Thunderbolt ™ 3 ports for daisy chain connections. High quality, reliable and quiet. Supports Kensington lock. Promise utility and cable is included. 3-year hardware warranty.

Technical data R6
• Form factor: RAID hardware housing with 6 bays
• Interface: 2x USB-C-Thunderbolt ™ 3 ports (40 Gb / s) or USB 3.2 Gen 2 ports (10 Gb / s)
• RAID level: 0 , 1, 5, 6, 10, 50, JBOD
• Compatibility: Systems with macOS 10.14 or later and Windows 10 x 64 activated
• Capacity: up to 84 TB
• Dimensions:
- Height: 25.1 cm (9, 8 in)
- Width: 18.7 cm (7.3 in)
- Length: 24.5 cm (9.6 in)
• Weight: 9.1 kg (20.1 lb)
• Warranty: 3-year warranty

• Requirements: workstation or laptop with Thunderbolt ™ 3 or USB 3.2 port * * One host connection each.
