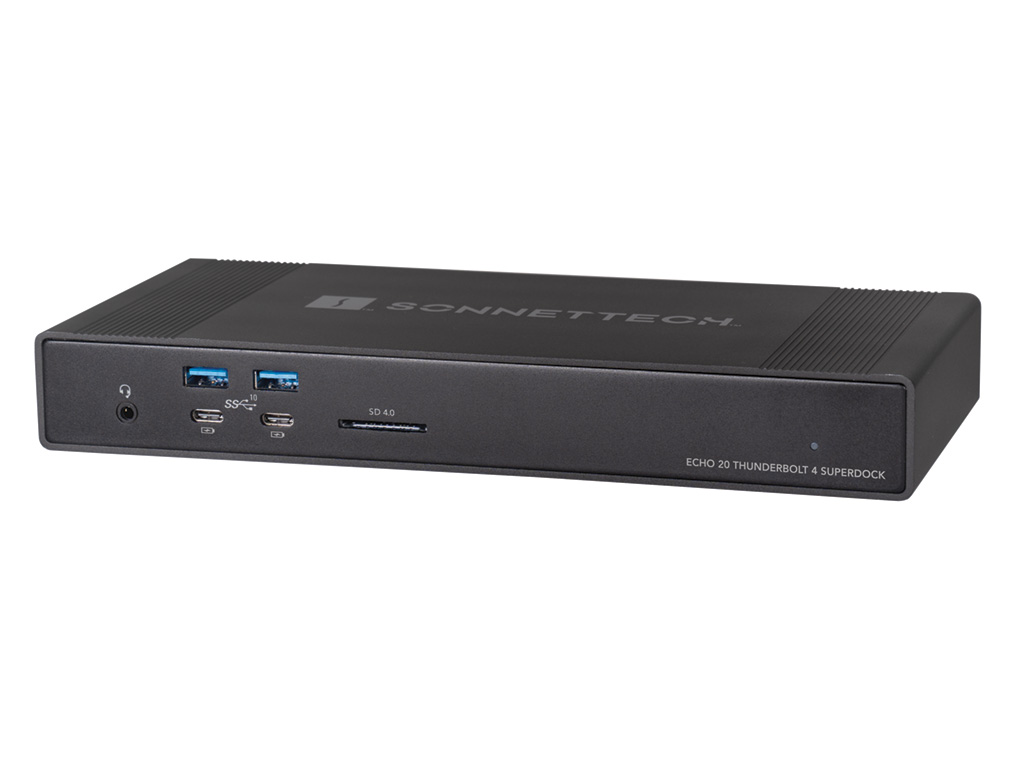

Sonnet Echo 20 Thunderbolt 4 SuperDock

Echo™ 20 Thunderbolt 4 SuperDock
Pro Ports + M.2 SSD Storage

Connect your Thunderbolt devices, monitors, USB peripherals, powered speakers, and Ethernet cable to the dock
and then link them all to your computer with a single Thunderbolt cable. Got a laptop computer? You can keep its power
adapter in your bag because Echo 20 Thunderbolt 4 SuperDock will power it with up to 100W of charging power.
When it is time to leave, just unplug the Thunderbolt cable, grab your computer, and go.

Internal SSD expansion Slot
The built-in M.2 NVMe SSD slot enables you to add up to 8TB of SSD storage (SSD sold separately)
to your system without connecting a storage device to the Echo dock or the computer.
SSD installation is an easy task – simply remove the two screws securing a bottom panel cover,
insert the SSD, and reinstall and secure the bottom cover. Transfer and access data at up to 800 MB/s,
and effortlessly store large files, media libraries, or your Time Machine® backups.

Compatibility

Mac Compatibility:
Mac (M1/M2/M3) supports one display
Mac (M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, M1/M2 Ultra, or M4) supports two displays
Mac (Intel) with Thunderbolt 3 ports supports two displays
macOS 11+
macOS Sequoia compatible

Windows Compatibility:
Windows computer with a Thunderbolt 4 or 5 port
Windows computer with a Thunderbolt 3 port and an Intel 8th Gen (2018) or newer CPU
Windows computer with USB4 port
Windows 11 and 10

Chromebook Compatibility:
Chromebook with a Thunderbolt 4 port

iPad Pro Compatibility:
M1/M2 iPad Pro supports one mirrored monitor

Hardware

Part Number:
ECHO-DK20-T4
Form Factor:
Thunderbolt dock

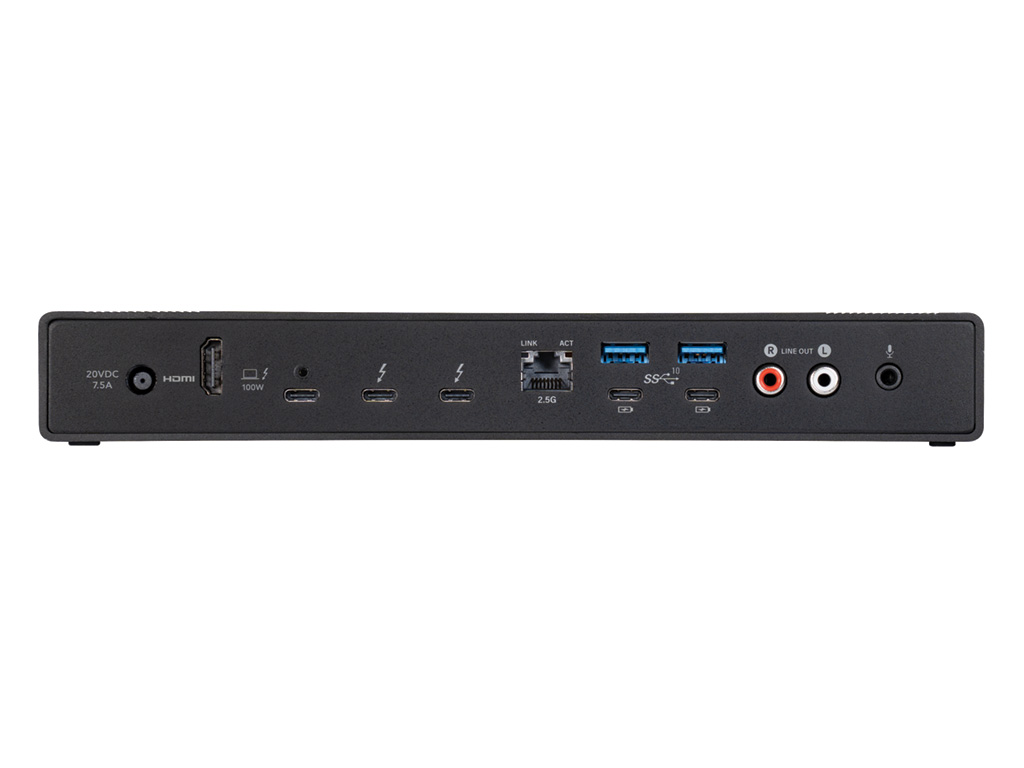

Connectors:
Three Thunderbolt 4 ports
Four USB 3.2 Gen 2 (10Gbps) Type A ports
Four USB 3.2 Gen 2 (10Gbps) Type-C charging ports
HDMI 2.1 Port @60Hz
RJ45 2.5 Gigabit Ethernet port
3.5mm combination headphone/microphone jack
3.5mm microphone jack
Two (right and left channels) line out RCA jacks
UHS-II SD card slot
M.2 SSD slot
Power connector

Thunderbolt 4 Computer Port

Power Delivery
Provides laptop charging up to 100W
Cables Supported
Any Thunderbolt 4 cable (0.7-meter included)
100W 0.2, 0.5, 0.7, 0.8-meter Thunderbolt 3 cables
Cables Not Supported
60W Thunderbolt 3 cables
1.0, 1.5, 1.8, 2.0-meter Thunderbolt 3 cables

Thunderbolt 4 Peripherals Ports

Connectivity:
With USB-C connector
Peripherals Supported:
Thunderbolt 3
Thunderbolt 2 (macOS)
USB4
USB 3, 2.0 and 1.1 devices
Thunderbolt 4, Thunderbolt 3, and USB-C monitors
DisplayPort and HDMI monitors

HDMI Port:
Windows: HDMI 2.1 up to 8K 60Hz
macOS: HDMI 2.0 up to 4K 60Hz

USB 3.2 Gen 2 Type A Ports:
Connectivity with USB Type A connector
Peripherals Supported
USB 3, 2.0 and 1.1 devices(4)
Data Transfer Rate
USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps

USB 3.2 Gen 2 Type-C Ports:
Connectivity with USB Type-C connector
Peripherals Supported:
USB 3, 2.0 and 1.1 devices(4)
Data Transfer Rate:
USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps

Charging:
1.5A per port advertised using USB Type-C Charging
7.5W per port for operation or charging
Supports simultaneous charging and syncing

RJ45 (Ethernet) Port

Network Support:
Supports 2500 Mb/s, 1000 Mb/s, and 100 Mb/s network speeds and Auto-MDI/MDI-X

Standard:
Compliant with 802.3bz-2016
and 10/100/1000 IEEE 802.2 Specifications

Network:
2.5 Gigabit Ethernet (2.5GBASE-T, 1000BASE-T, 100BASE-TX)

Chip:
Realtek RTL8156

Fast UHS-II SD Card Reader:
Cards Supported
SD, SDHC, SDXC
microSD, microSDHC, and microSDXC cards
when used with adapter (sold separately)

Audio Line Out:
Connectivity RCA R+L connectors

Internal Slot:
NVMe M.2 slot (connected at PCIe x1)

Power Delivery:
Provides laptop charging up to 100W

Kensington Security Slot™:
Supports Standard, MicroSaver®, and MicroSaver 2 Locks

Power Adapter:
Universal 150W, 100-240V AC, 50-60 Hz

Dimensions (WxDxH):
Dock: 24.3 x 10.6 x 3.3 cm
Power Adapter: 6.6 x 13.7 x 2.2 cm
Weight:
Dock and Power Supply: 2.55 lbs (1.16 kg)
Complete Package: 3.55 lbs (1.51 kg)

Compliance:
RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety
VCCI-B certified
FCC Part 15, Subpart B
CISPR 32 / EN 55032
Power Supply (PSE certified; UL certified)

Package Contents:
Echo 20 Thunderbolt 4 SuperDock
Power adaper
Power cord
0.7-meter Thunderbolt cable
ThunderLok-S (Thunderbolt connector retainer clip)(5)
Documentation
