Sonnet Echo 11 Thunderbolt 4 HDMI Dock

Echo 11 Thunderbolt 4 HDMI® Dock
Standard Ports + HDMI

Universal Thunderbolt 4 Dock with Three Thunderbolt 4 Ports,
HDMI Port, 2.5Gb Ethernet, and 8K Display Support

Expand Your Connectivity Beyond the Expected
Sonnet’s Echo™ 11 Thunderbolt 4 HDMI Dock – the connections you expect from a Thunderbolt™ dock
plus the HDMI port and ultra-fast 2.5 Gigabit Ethernet support you need. With this versatile and universal
docking station, a single cable connects your computer to your digital world.

Compatibility

Mac Compatibility:
Mac (M1/M2/M3) supports one display
Mac (M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, M1/M2 Ultra, and M4) supports two displays
Mac (Intel) with Thunderbolt 3 ports supports two displays
macOS 11+
macOS Sequoia compatible

Windows Compatibility:
Windows computer with a Thunderbolt 4 or 5 port
Windows computer with a Thunderbolt 3 port and an Intel 8th Gen (2018) or newer CPU
Windows computer with a USB4 port
Windows 11 and 10

Chromebook Compatibility:
Chromebook with a Thunderbolt 4 port or USB4 port

iPad Pro Compatibility:
M1/M2 iPad Pro supports one mirrored monitor

Hardware

Part Number:
ECHO-DK11H-T4

Form Factor:
Thunderbolt dock

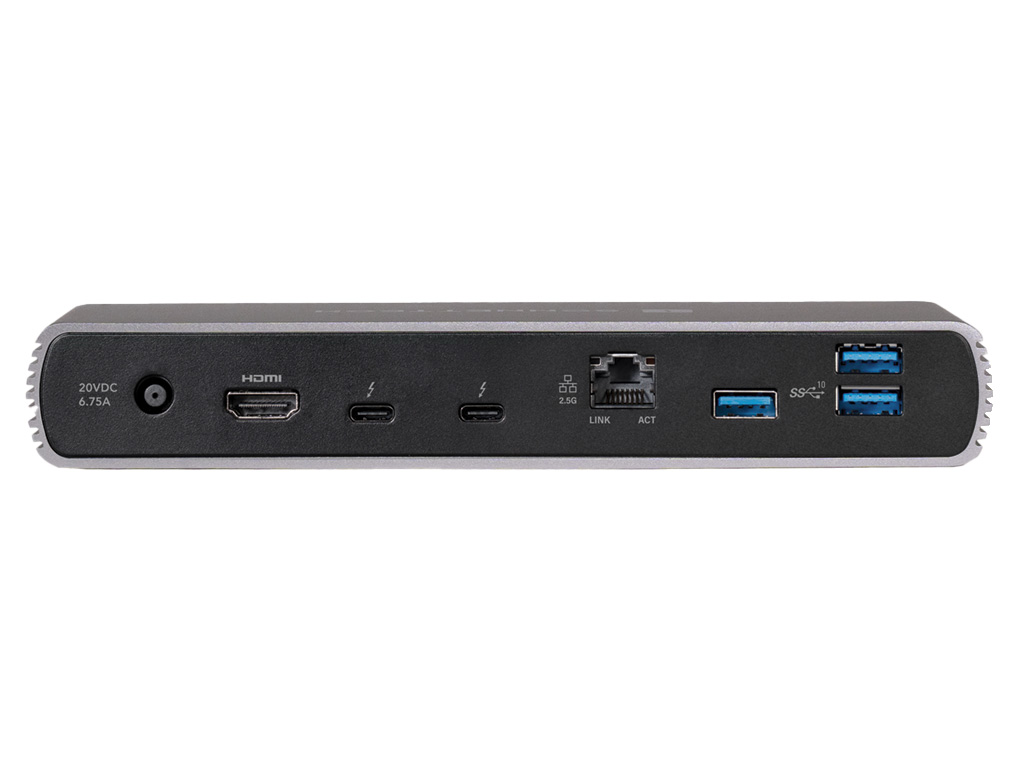

External Connectors

Three Thunderbolt 4 ports
HDMI Port
USB 3.2 Gen 2 (10Gbps) Type A ports
USB 3.2 Gen 2 (10Gbps) Type A charging port
RJ45 2.5 Gigabit Ethernet port
3.5 mm combination audio headphone/microphone jack
UHS-II SD card slot
Power connector

Thunderbolt 4 Computer Port

Power Delivery:
Provides laptop charging up to 100W(1)
Cables Supported:
Any Thunderbolt 4 cable (0.7-meter included)
100W 0.2, 0.5, 0.7, 0.8-meter Thunderbolt 3 cables
Cables Not Supported:
60W Thunderbolt 3 cables
1.0, 1.5, 1.8, 2.0-meter Thunderbolt 3 cables

Thunderbolt 4 Peripherals Ports

Connectivity:
With USB-C connector
Peripherals Supported:
Thunderbolt 3
Thunderbolt 2(2) (macOS)
USB4
USB 3, 2.0 and 1.1 devices
USB hubs
Thunderbolt 3 and USB-C monitors
DisplayPort and HDMI monitors(3)

HDMI Port:
Windows
HDMI 2.1 up to 8K 60Hz
macOS
HDMI 2.0 up to 4K 60Hz

USB 3.2 Gen 2 Type A Port (Front Panel)

Connectivity:
With USB Type A connector
Peripheral Supported:
USB 3, 2.0 and 1.1 devices
USB hubs up to 4 ports
Data Transfer Rate:
USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
Charging:
7.5W capacity to charge iPad, iPhone, or other device
USB Battery Charging 1.2–compliant
Supports simultaneous charging and syncing

USB 3.2 Gen 2 Type A Ports (Rear Panel):

Connectivity:
With USB Type A connector
Peripherals Supported:
USB 3, 2.0 and 1.1 devices
USB hubs up to 4 ports
Data Transfer Rate:
USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps

RJ45 (Ethernet) Port

Network Support:
Supports 2500 Mb/s, 1000 Mb/s, and 100 Mb/s network speeds and Auto-MDI/MDI-X
Standard:
Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 Specifications
Network:
2.5 Gigabit Ethernet (2.5GBASE-T, 1000BASE-T, 100BASE-TX)
Packets:
Maximum packet size: 9000 bytes (Jumbo packets)
Chip:
Realtek RTL8156

SD Card Slot

SD, SDHC, SDXC
microSD, microSDHC, and microSDXC
cards when used with adapters (sold separately)

Power Delivery:
Provides laptop charging up to 100W

Power Adapter:
Universal 135W, 100-240V AC, 50-60 Hz

Dimensions (WxDxH):
Dock: 20.0 x 7.5 x 3.0 cm
Power Supply: 6.6 x 13.7 x 2.3 cm
Weight:
Dock and Power Supply: 0.8 kg
Complete Package: 1.2 kg

Compliance:
RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety
VCCI-B certified
FCC Part 15, Subpart B
CISPR 32 / EN 55032
Power Supply (PSE certified; UL certified)

Warranty:
2-year

Package Contents:
Echo 11 Thunderbolt 4 HDMI Dock
Power adaper
Power cord
0.7-meter Thunderbolt cable
Documentation
